ISSN: 2276-7770; ICV: 6.15
Vol. 6 (10), pp. 304-311, November 2016
Copyright ©2017, the copyright of this article is retained by the author(s)
Research Article (DOI: http://doi.org/10.15580/GJAS.2016.10.101916186)
Aflatoxin and Fumonisin Contamination of at-harvest and Storage Beans in Babati District, Northern Tanzania
Department of Science and Business Management, Mbeya University of Science and Technology, P.O. Box 131, Mbeya, Tanzania.
Article No.: 101916186
The natural occurrence of total aflatoxin and fumonisin was determined in 38 bean at-harvest samples and 106 storage beans samples in the year 2013 in Babati District Northern Tanzania. Quantification for total aflatoxin and fumonisin was done using Enzymes Linked Immunosorbent Assay - ELISA (Reveal AccuScan® Neogen, USA), and the results were confirmed using Liquid Chromatography Tandem Mass Spectrometer (LC-MS/MS). Eighteen percent (7/38) of bean at harvest samples were contaminated with up to 3 µg/kg aflatoxins and no bean sample was contaminated with fumonisins. There was a significant correlation (p < 0.05) between the concentration of aflatoxins and fumonisins with climatic zones and agronomic practices. Only bean samples from the high altitude high rain zone were contaminated with aflatoxins (mean level of 1.53 µg/kg). For storage beans, samples from Seloto village were associated with higher aflatoxin concentration (mean of 3.74 µg/kg) and those from Long village were associated with higher fumonisin levels (mean of 9.0 mg/kg). These results indicate that beans consumers in the study area are exposed to the danger of chronic exposure to aflatoxin and fumonisin poisoning. Thus, those practices that reduce contamination should be adopted by all farmers in the study area to reduce the health hazards associated with consumption of contaminated beans. This also calls for further research to investigate human exposure to aflatoxin and fumonisin in the study area.
E-mail: nyangichacha @yahoo. com
Aflatoxin, fumonisin, at-harvest, storage practices, beans, Babati, Tanzania
Common beans (Phaseolus vulgaris L.) is major dietary food in most part of Tanzania, with a production of 1 150 000 MT (FAO, 2013). Aflatoxins and fumonisins have been reported to occur in low concentrations in beans (Aiat, 2006; Nyinawabali, 2013). The information on mycotoxin contamination of beans is still scanty in Tanzania.
Aflatoxins, produced mainly by Aspergillus flavus, can cause acute and chronic toxicity, immunosuppression, mutagenicity, teratogenicity, genotoxicity and carcinogenicity (Omari, 2013). The International Agency for Research on Cancer classified aflatoxin B1 as a highly poisonous toxic, class 1 human carcinogen (IARC, 1993). Fumonisins are produced by Fusarium spp. mostly by Fusarium verticillioides (previously known as F. moniliforme) (Omari, 2013; Nyinawabali, 2013). Fumonisins have been associated with human oesophageal cancer in South Africa and in addition to liver cancer in China and stunting and underweight in Tanzania (Marasas et al., 2008, Ueno et al., 1997; Kimanya et al., 2010). IARC classified fumonisin as a group 2B toxin, considered as possibly carcinogenic to humans (IARC, 1993).
Several agronomic practices and factors have direct influence on the contamination of grains by aflatoxins, fumonisins and other mycotoxins. These include; temperature and humidity (Milani, 2013; Atanda et al., 2013). Soil types and nutrients supply (Atanda et al., 2013), tillage method (Janusauskaite et al., 2013; Gil-Sotres et al., 2005), time of planting and harvesting (Abbas et al., 2007; Bruns, 2003; Kahaya et al., 2006) and crop rotation (Atanda et al., 2013).
Although common beans is an important dietary staples in many African countries, including Tanzania, no research has been conducted in Tanzania to establish the relationship between production, handling and storage practices and the occurrence of total aflatoxin and fumonisin in beans. The aim of this study is to determine the effect of pre-harvest field management (agronomic) and post harvest practices on contamination of at harvest and storage beans with aflatoxin and fumonisin.
2.0 MATERIALS AND METHODS
2.1 Study area
The study was conducted in three villages in Babati district, Manyara region, Tanzania, namely, Long, Sabilo and Seloto, representing different climatic zones in the year 2013. The high-altitude high-rain zone represented by Long village, lies between 2150 and 2450 metres above sea levels (m.a.s.l) with a relatively high annual rainfall of 1200 mm. The mid-altitude low-rainfall zone represented by Sabilo village, lies between 1500 and 1850 m.a.s.l and with a production season characterised by relatively low rainfall of 900 to 1100 mm, and the mid-altitude high-rain zone represented by Seloto village that lies between 1850 – 2150 m.a.s.l with a production season; characterised by annual rainfall of 1100 – 1200 mm. The previously recorded temperature in the study area ranged from 12oC in Long village to 25oC in Sabilo village. The selected villages were under the Africa RISING Eastern and Southern Africa project on Sustainable Intensification of Farming Systems supported by USAID’s Feed the Future program. Maize and common beans were also the major staple foods.
2.2 Selection of farmers
The farmers who participated in the study were randomly selected using a list provided by the respective village leaders and extension officers. A total of 38 farmers were selected for at harvest beans sampling and 60 farmers for storage beans sampling in three villages.
2.3 Sample collection
A total of 38 bean samples were collected at harvest in March, 2013 and 106 from storage bean samples between March and September, 2013. Information on production practices used by farmers in the three villages was obtained using a semi-structured questionnaire. Responses were elicited on farmers’ planted variety, previous crops, pest problems in the field, planted and harvested date, tillage method, planting pattern (flat, on ridges, on mounds), harvested condition (wet or dry), condition of harvested crop (clean or spoiled) and intended use of the harvested crops. GPS coordinates and basic demographic details of farmers/producer were also collected. Responses from the farmers were used to evaluate farming practices. For storage samples, samples were collected at an interval of 0 and 90 days from farmers’ traditional storage facilities (i.e., farmers’ own storage facilities, either granary or polypropylene bags); The farmers were interviewed using a semi-structured questionnaire. Responses were elicited on farmers’ storage practices, storage structures, pest problems in storage, storage treatment, length of storage and farmers' solutions to these problems. GPS coordinates and basic demographic details of farmers/producer were also collected. Responses from the farmers were used to evaluate storage practices and handling techniques.
Samples in the field were taken by walking in two diagonal directions and stopping at regular intervals to pick a sample so as to have a good representative samples. A total of five stops were chosen in each field and 50 pods collected per field, these were then hand shelled, well mixed and approximate 1kg sample was randomly selected. The collected samples were packed in a clean A4 envelope and transported to the Plant Pathology Laboratory at International Institute of Tropical Agriculture (IITA), Tanzania.
2. 4 Quantification of total aflatoxin and fumonisin
Quantification for total aflatoxin and fumonisin was done according to Nyangi et al. (2016)
2.5 Statistical analysis
Data were analysed using Statistical Analysis System (SAS® Version 9.4, SAS Institute Incorporation, USA). A generalized linear model (GENMOD) was run to identify the factors that significantly affect contamination beans with aflatoxin and fumonisins. The differences between means were detected using least square means (LSMEANS) to establish differences in mean total aflatoxin and fumonisin amongst the climatic zones (Villages) and agricultural as well as storage practices.
3.1 Total aflatoxin and fumonisin content in beans

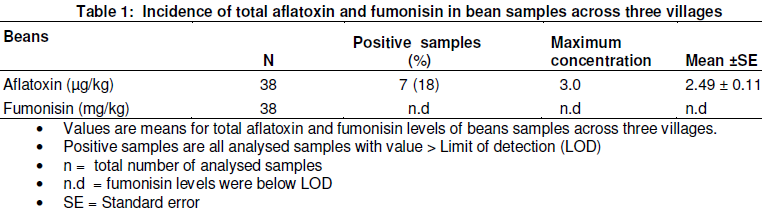

Eighteen percent of bean samples were contaminated with aflatoxin (Table 1).

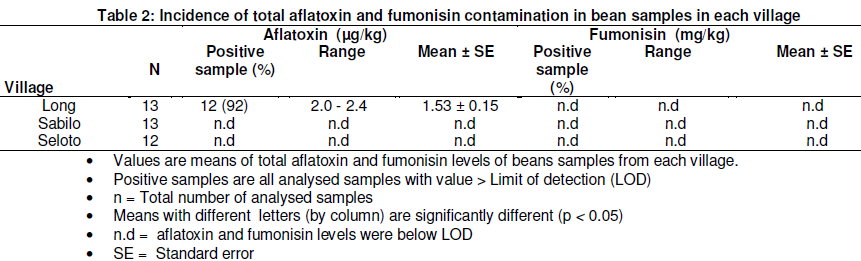

The highest aflatoxin mean value for beans was only found in Long village, with no aflatoxin and fumonisin level detected in Sabilo and Seloto village (Table 2).
3.2 Agronomic practices/factors associated with aflatoxin and fumonisin levels in beans
For aflatoxin and fumonisin contamination in beans, the results indicated that no climatic zone or agronomic practice was statistically significant for effects on aflatoxin or fumonisin levels.
3. 3 Storage practices associated with aflatoxin and fumonisin levels in beans
3.3.1. Storage structures
Traditional storage structures in all three villages were almost similar, the commonly used traditional storage being polypropylene bags and locally made granaries known as ‘Vihenge’ in Kiswahili. ‘Vihenge’ are made of wooden and woven with twigs or bamboo from surrounding forests and covered with thatch grass or iron sheets and sometimes kept inside a house.
Drying of beans was mainly done on bare ground and on platform, few farmers were drying their crops on mats/floor. The beans is usually harvested when physiologically mature and transported to farmers’ houses for further drying .
The raised platform was constructed with medium sized pieces of trees and at a height of approximately one metre above the ground, constructed outside farmer’s houses and well protected against animals.
3.3.3. Stores treatment
Farmers were treating their stores against insects’ infestation before introducing crops to be stored. Store treatment was done by using either chemical pesticides or natural protectants (plant). Chemical pesticides were sprayed in the store especially on walls, floor and ceiling before introducing crops to be stored. Common pesticides used were Actellic® (pirimiphos-methyl) and Bami force® (Permethrin and Malathion). An alternative treatment involved the use of traditional plants comprised a mixture of dried, ground plant leaves combined with burnt cow dung and sometimes ashes to treat traditional storage facilities (Cribs/Granaries).
3.3.4. Grain treatment
Farmers used chemical pesticides which were specific formulation for stored grains such as Super Shumba® (pirimiphos-methyl and permethrin), Actellic® (pirimiphos-methyl), Bami force® (Permethrin and Malathion) or Zinc phosphate®. Few farmers applied traditional plants as storage protectants; this involves dried and ground plant leaves mixed with burnt cow dung and ashes. The common pest infesting maize was identified as Sitophillus zeamaiz. Farmers also complained of rodents as being a constant storage problem.
3.3.5. Storage with other crops
The most common crops that are usually stored alongside maize were beans and few farmers stored maize with wheat, sunflower and pigeon pea. All farmers in the three villages usually cleaned their stores and removed all previous crop residues from the store before introducing new harvest.
3.3.6. Total aflatoxin and fumonisin content in beans

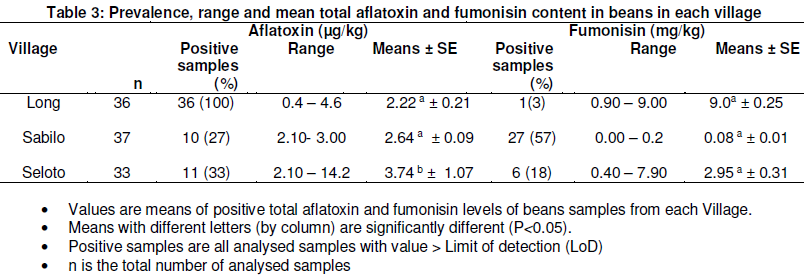

Prevalence, range and mean total aflatoxin and fumonisin beans in each village is reported in Table 3. The highest aflatoxin mean value of 3.74 µg/kg was found in Seloto village, and for fumonisin the highest mean value of 9 mg/kg was found in Long village.

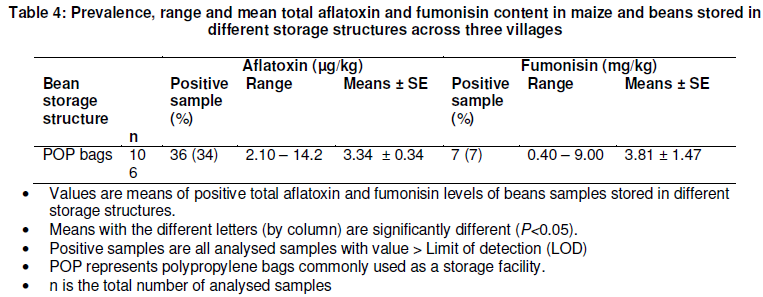

Bean samples collected from polypropylene bags had aflatoxin level with a mean value of 3.34 µg/kg, and fumonisin mean value of 3.81 mg/kg (Table 4)

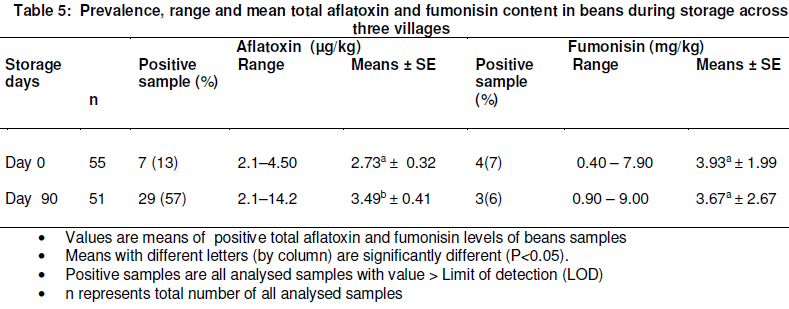

The results from the storage time for bean indicated that the mean aflatoxin levels increased from day 0 to day 90. The observed increase was statistically significant at day 90 from the rest of the storage period (P< 0.05). The mean fumonisins level decreases during the entire storage period (day 0 to day 90) and the decrease was not statistically significant (Table 5).
4.1 Total aflatoxin and fumonisin contamination in at harvest beans
The maximum concentration of 3 µg/kg total aflatoxin (Table 1) was lower than MTL of 10 µg/kg set by East African Community for dry beans and 4 µg/kg set by European Union regulations (EAC, 2011; EC, 2010). This maximum concentration was also lower than 1463 µg/kg one of the highest levels recorded and reported from Egypt, and 154.9 µkg/kg reported from Rwanda (Aiat, 2006; Nyinawabali, 2013).
The fumonisin concentration for all bean samples were below the LOD of 0.3 mg/kg (Table 1), lower than MTL of 2 mg/kg for East African Standards (EAC, 2011). This maximum concentration was also lower than 7.1 mg/kg reported from Rwanda (Nyinawabali, 2013). All bean samples were considered fit for human consumption because they contained aflatoxin and fumonisin below the permissible levels.
The low aflatoxin and fumonisins levels could be attributed to environmental characteristics of the different climatic zones and different agricultural practices which have shown to have an impact on aflatoxin development. It was reported that soy bean seed coat and integrity acts as a barrier against fungal attack and hence mycotoxins contamination (Stössel, 1986). Other factors being constant, this might be the reason for low levels of aflatoxin and fumonisin reported in beans samples from this study.
4.2. Total aflatoxin and fumonisin contamination in storage beans
Total aflatoxin and fumonisin was quantified in 106 beans samples collected in the year 2013 (Table 3). The highest concentration for total aflatoxin was 14.2 µg/kg; only one sample had aflatoxins levels above permitted levels by East Africa Community standards of 10 µg/kg (EAC, 2011). The highest level observed in this study was lower than 21.48 µg/kg reported by Tseng et al. (1995) in Ontario, Canada and Taiwan; 154.9 µg/kg reported by Nyinawabali (2013) in Rwanda and 0.02 µg/kg reported by Aiat (2006) in Egypt.
The observed maximum concentration for total fumonisin in beans was 9 mg/kg (Table 3), this was higher than the limit of 2 mg/kg set by EAC standards (EAC, 2011). The observed maximum fumonisin level was higher than 1.8 mg/kg of fumonisin B1 reported by Tseng et al. (1995) in Ontario, Canada and Taiwan; and 7.1 mg/kg reported by Nyinawabali (2013) from Rwanda.
The low aflatoxin levels could be attributed to different agricultural practices that reported to have influence on aflatoxin and fumonisin development (Milani, 2013). Stössel (1986) reported that soy bean seed coat and integrity acts as a barrier against fungal attack and hence mycotoxins contamination, other factors being constant, this might be the reason for low levels of aflatoxin and fumonisin reported in beans samples from this study.
The data from this study support the results from previous studies that reported how the proliferation of aflatoxin and fumonisin interact with storage factors. It was previously reported that aflatoxin and fumonisin was related to storage structures (Hell et al., 2010; Fandohan et al., 2005), insect infestation (Udoh et al., 2000; Hell et al., 2000; Fandohan et al., 2005), length of storage time (Orsi et al., 2000; Egal et al., 2005), climatic conditions (Kaaya and Kyamuhangire, 2006; Milani, 2013), sorting (Hell and Mutegi, 2011), Drying methods (Atukwase et al., 2009).
The results indicated that some of the production practices used by farmers and the environmental conditions that prevailed in the production area predisposed beans to contamination with aflatoxin and fumonisin. As control of the environmental conditions is difficult, farmers should adopt good agricultural practices such as timely planting, fertilizer applications and proper land tillage in order to reduce fungal proliferation and elaboration of mycotoxins in maize and common beans.
Several storage factors that may help to reduce aflatoxin and fumonisin levels in stored beans in the study area were identified. These included control of storage insects and mycotoxins levels by application of insecticides; treating storage structures with pesticides; hygiene and sanitation by removing previous year residues and awareness creation to farmers of the risk of aflatoxin and fumonisin to their crops and health. Further research are required to show how shelling, drying, insects infestation, storage form and storage structures influences aflatoxin and fumonisin levels in different agro-ecological zones in Tanzania and intervention strategies to mitigate mycotoxins.
We thank the Innovative Agriculture Research Initiatives (iAGRI), International Institute of Tropical Agriculture (IITA) and Africa RISING Eastern and Southern Africa project on sustainable intensification of farming systems, under the support of United States Agency for International Development (USAID’s) Feed the Future project for providing financial and technical assistance. We also appreciate the support of Grace Michael of IITA Tanzania for her concerted effort during the surveys and to farmers that cooperated with us during the surveys.
Abbas HK, Shier WT, Cartwright, RD (2007). Effect of temperature, rainfall and planting date on aflatoxin and fumonisin contamination in commercial Bt and non-Bt corn hybrids in Arkansas. Phytoprotection 88 (2): 41-50
Aiat N (2006). Genetic Variability among Three Species of Aspergillus. Seed born Aspergillus Sp. and Aflatoxins Associated with Dry Beans (Phaseolus vulgaris L.). J. Appl. Sci. Res. 2(11): 874-878.
Atanda O, Makun HA, Ogara IM, Edema M, Idahor KO, Eshiett ME and BF Oluwabamiwo (2013). Fungal and Mycotoxin Contamination of Nigerian Foods and Feeds. In: Makun H A (Ed). Mycotoxin and Food Safety in Developing countries. InTech Janeza Trdine 9, 51000 Rijeka, Croatia. 1: 15-50.
Atukwase, A, Kaaya, AN and Muyanja, C (2009). Factors associated with fumonisin contamination of maize in Uganda. J. Sci. Food Agr. 89: 2393–2398.
Bruns HA (2003). Controlling aflatoxin and fumonisin in maize by crop management. J. Toxicol. Toxin. Rev. 22(2-3): 153 -173.
East African Community Final Draft East African Standards (EAC) FDEAS No. 46/2011 of 2011 specifying requirements and methods of sampling and test for dry common beans (Phaseolus vulgaris Linn) intended for human consumption. [file:///C:/Users/user/Downloads/Dry_beans_Specification.pdf]. 2011b; site visited on 04-08-2014.
Egal, S, Hounsa A, Gong YY, Turner PC, Wild CP, Hall AJ, Hell K and Cardwell K (2005). Dietary exposure to aflatoxin from maize and groundnut in young children from Benin and Togo, West Africa. Int J Food Microbiol. 104: 215-224.
European Commission Commission Regulation (EC) No. 165/2010 of November 2010 setting maximum levels for certain contaminants in food stuffs as regards aflatoxins. Official Journal of the European Union, I. 2010; 50:8-12 [http://ec.europa.eu/food/food/chemicalsafety/contaminants/guidance-2010.pdf] site visited on 28/05/2015.
Fandohan P, Ahouansou R, Houssou P, Hell K, Marasas WFO and Wingfield MJ (2005). Impact of mechanical shelling and dehulling on Fusarium infection and fumonisin contamination in maize. Food Addit Contam. 23: 451-421.
FAO. FAOSTAT database: [http://faostat3.fao.org/faostat-gateway/go/to/download/Q/QC/E]. 2013; site visited on 04–08-2015.
Gil-Sotres F, Trasal-Cepeda C, Leiros MC and S Seoane (2005). Different approaches to evaluating soil quality using biochemical properties. Soil Biol Biochem. 2005; 37: 877- 892.
Hell K and Mutegi C (2011). Aflatoxin control and prevention strategies in key crops of Sub-Saharan Africa. Afr. J. Microbiol. Res. 5(5): 459-466.
Hell K, Cardwell KF, Setamou M and Poehling HM (2000). The influence of storage practices on aflatoxin contamination in maize in four climatic zones of Benin West Africa. J Stored Prod Res. 36:365-382.
Hell K, Ognakossan KE, Tonou AK, Lamboni Y, Adabe, KE and Coulibaly O (2010). Maize Stored Pests Control by PICS-Bags: Technological and Economic Evaluation. Presentation at the 5th World Cowpea Conference, Saly, Senegal, 27 September–1October 2010. [https:// ag.purdue.edu/ipia/ pics/documents/ presentation-%20hell%20-wcc%202010-%2029%20sept.pdf] site visited on 16/05/2016.
International Agency for Research on Cancer (IARC) (1993). Ochratoxin A. Monographs on the Evaluation of Carcinogenic Risks to Humans, Some Naturally Occurring Substances. Food Items and Constituents, Heterocyclic Aromatic Amines and Mycotoxins. 56: 489–521.
Janusauskaite D, Kadziene G and O Auskalniene (2013). The effect of tillage system on soil Microbiota in relation to soil structure. Pol J Environ Stud. 22(5): 1387-1391.
Kaaya AN, Kyamuhangire W and Kyamanywa S (2006). Factors affecting aflatoxin contamination of harvested maize in the three climatic zones of Uganda. J Appl Sci. 11: 2401–2407.
Kaaya AN and Kyamuhangire W (2006). The effect of storage time and climatic zone on mould incidence and aflatoxin contamination of maize from traders in Uganda. Int J Food Microbiol. 110:217-223.
Kimanya ME, De Meulenaer B, Roberfroid D, Lachat C and P Kolsteren (2010). Fumonisin exposure through maize in complementary foods is inversely associated with linear growth of infants in Tanzania. Mol Nutr Food Res. 54: 1659–1667.
Marasas WFO, Gelderblom WCA, Shephard GS and HF Vismer (2008). Mycotoxins: A Global Problem. In: Leslie J F, Bandyopadhyay R and A Visconti (Eds). Mycotoxins: Detection methods, Management, Public Health and Agricultural Trade. Cromwell press, Townbridge, UK. 4: 29-39.
Milani JM (2013). Ecological conditions affecting mycotoxin production in cereals: a review. Vet. Med-Czech. 58(8): 405–411.
Nyangi C, Beed F, Mugula JK, Boni S, Koyano E, Mahuku G, Sulyok M and B Mateete Assessment of Pre-harvest Aflatoxin and Fumonisin Contamination of Maize in Babati District, Tanzania. Afr. J. Food Agric. Nutr. Dev. 2016; 16(3): 11039-11053.
Nyinawabali F A survey of fungi and mycotoxins in selected food commodities from Rwanda. Published Dissertation for award of MSc Degree at University of Johannesburg, South Africa.
Omar HEM (2013). Mycotoxins-Induced Oxidative Stress and Disease. In: Mycotoxin and Food Safety in Developing countries (Edited by Makun, H.A.) InTech Janeza Trdine 9, 51000 Rijeka, Croatia. pp. 75-104.
Orsi RB, Corrêa B, Possi CR, Schammass EA, Nogueira JR, Dias SMC and Malozzi MAB (2000). Mycroflora and occurrence of fumonisins in freshly harvested and stored hybrid maize. J Stored Prod Res. 36: 75-87.
Stössel P (1986). Aflatoxin contamination in soybeans: role of proteinase inhibitors, zinc availability, and seed coat integrity. Appl. Environ. Microbiol. 52: 68–72.
Tseng TC, Tu JC and Tzean SS (1995). Mycoflora and mycotoxins in dry bean (Phaseolus vulgaris) produced in Taiwan and in Ontario, Canada. Bot Bull Acad Sinica. 36:229–234.
Udoh JM, Cardwell KF and Ikotun T (2000). Storage structures and aflatoxin content of maize in five climatic zones of Nigeria. J Stored Prod Res. 36(2): 187-201.
Ueno Y, Iijima K, Wang SD, Sugiura Y, Sekijima M and T Tanaka (1997). Fumonisins as a possible contributory risk factor for primary liver cancer: A 3-year study of corn harvest in Haimen, China, by HPLC and ELISA. Food Chem Toxicol. 35: 1143 – 1150.
Cite this Article: Nyangi C (2016). Aflatoxin and Fumonisin Contamination of at-harvest and Storage Beans in Babati District, Northern Tanzania. Greener Journal of Agricultural Sciences, 6(10): 304-311, http://doi.org/10.15580/GJAS.2016.10.101916186.
