Impact of Water Soluble Fractions of Crude Oil on Growth Performance of Ptychadena mascariensis

NAFAGHA-LAWAL Magdalene Okeh¹, SIKOKI Francis David² and GEORGEWILL Onwunari Abraham³

Greener Journal of Biological Sciences, vol. 6, no. 5, pp. 089-094, November, 2016

¹Research Associate, Center for Marine Pollution Monitoring and Seafood Safety, University of Port Harcourt, Rivers state.

²Professor, Department of Animal and Environmental Biology, University of Port Harcourt, Rivers state.

³Professor, Department of Pharmacology, University of Port Harcourt, Rivers state.

Emails: ²francis.sikoki@ uniport.edu .ng; Tel: +2348035442364,

³Owunari.georgewill @uniport .edu .ng; Tel: +2348033170636

INTRODUCTION

Frequent spillages of crude oil and its products in creeks and rivers of the Niger Delta have resulted in a marked reduction in the number of both freshwater and marine animals (Ekweozor, 1989). Oil pollution, one of the environmental consequences of crude oil exploration and exploitation activities produces aqua-toxicological effects, which are deleterious to aquatic life (Kori-Siakpere, 2000). A variety of pollutants including crude oil and its products are known to induce stress conditions, which impair the health of fish (FEPA, 1999).

Pollution may damage organisms directly by increasing their mortality, or interfering with the processes of food acquisition and uptake, and reducing their growth and reproduction rates. Growth represents the integration of feeding, assimilation and energy expenditure over a period of time. Poor growth means less energy is available for reproduction, which will in turn reduce the species fitness and lead to a decline in population. Growth rate of an organism therefore can serve as a time-integrated indicator of the general well being of the organism.

Frogs are excellent indicators of pollution due to the sensitivity of their skin and eggs to both aquatic and terrestrial agents as they can readily absorb substances from their environment, making them very sensitive to perturbations in ecosystems.  For this reason, their aquatic larval stages are increasingly viewed as bio-indicators of health of aquatic systems (Hartwell and Olivier, 1998). In amphibian larvae no barriers are provided by scales, feathers or fur covering. The thinness of their skin makes them highly permeable to aquatic pollutants. In larval stages of amphibians, uptake of crude oil particles from the environment occurs principally through external and internal gills as well as cutanous respiratory surfaces and gastro intestinal ducts. The primary routes of exposure of crude oil to larval amphibians are principally through direct uptake from water and diets (Grillitsch and Chorance, 1995).

Amphibian populations are in decline in many areas of the world. Numerous physical and chemical causes have been postulated and in some instances, interaction of multiple causes has been implicated. They include environmental contamination and destruction (Nafagha, 2007), predation (Lefcort and Blaustein, 1995), competition from exotic non indigenous species (Jennings and Hayes, 1985), parasites (Sessions and Ruth, 1990), disease (Carey and Bryant, 1998), ultraviolet radiation (Blaustein et al., 2003) and climate change (Corn et al., 1989). Growth rates and body size are important intraspecific characteristics for adult amphibians. First, rapid growth immediately following metamorphosis reduces the time to sexual maturity for anurans, allowing them to reproduce earlier (Turner, 1960). Second, reproductive output is often correlated with body size. For example, larger Spotted Salamanders (Ambystoma maculatum) and Wood Frogs (Rana sylvatica) produce significantly larger clutches than do smaller conspecifics  (Woodward, 1982; Howard, 1988), and larger male Bullfrogs (Rana  catesbeiana) mate more frequently each year than do smaller males (Howard, 1988). In some Ambystoma, larger individuals breed earlier in the season than do smaller individuals (Lowcock et al., 1992), perhaps offering a time advantage to their offspring in a rapidly fluctuating environment. Finally, larger male body size may be important in species where individuals defend territories (Howard, 1988). Amphibians exhibit indeterminate growth continuing to grow beyond reproductive maturity (Perrin and Sibley, 1993). Therefore, factors that affect growth and body size is if utmost importance in ensuring the survival of amphibians.

Given the global amphibian population decline and paucity of information on frogs, using growth rate as a marker for health, this study monitored the growth of P. mascariensis over a period of 84 days to investigate the effect of WSF of crude oil on the frogs

MATERIALS AND METHOD

Tadpoles of the frogs Ptychadena mascariensis were collected from laboratory bred frogs at the Laboratory of the Animal and Environmental biology, University of Port Harcourt. A total of 180 tadpoles were used for the experiment and were maintained at 22-24ºC with 12L: 12D fluorescent lighting. Clean water was maintained by pouring off old water every 2 days and replacing it. Tadpoles were pooled into a single tank and then randomly assigned to 18 20-L cubical plastic transparent tanks with 20 tadpoles per tank for each treatment including the controls filled with 5 cm of fluid. A static renewal bioassay was carried out with triplicates for 84days (12 weeks). Treatments consisted of six different concentrations (0mg/L, 0.3mg/L, 0.75mg/L, 1.5mg/L, 2.25mg/L and 3.0mg/L) of water-soluble fractions of crude oil. The toxicant used was Bonny light crude oil and the water soluble fractions was prepared following the method of (Anderson, 1977) by adding 1 part of crude oil to 9 parts of fresh water. Range finding tests were done to determine the threshold concentrations that will cause mortality (Reish and Oshida, 1986).  The tadpoles were introduced into the crude oil contaminated water from where they were fed with diet of corn and cowpea seeds. The water samples were analyzed as described in standard method for examination of water and wastewater (APHA, 1985).  At the end of the experiment, the limbs were formed and they were juvenile frogs at Gosner stages 44-47 (Gosner, 1960). The plastic tanks were covered with wire mesh to prevent them climbing out since they were very active animals.

Weight and length of the organisms were determined using a weighing balance (Mettler PN163) and measuring board respectively. Total length (TL) was measured from the tip of the snout to the extended tip of the tail. At post bud formation, the legs were extended before the measurements were taken. The lengths were taken with measuring board to the nearest 0.1 cm. Body weight of individual frog was measured to the nearest 0.1 g after removing the adhered water and other particles from the surface of body. The initial mean weight of frogs was 0.1±0.03g while the mean length was 1.6±0.03cm.

The mean growth rate of frogs at different concentrations was represented in a growth curve by plotting the mean weight of the frogs at different time intervals (in weeks). Measurement of the tadpoles began 7days post hatch and continued for 84days (12 weeks). The weight in grams was plotted against time in weeks to give the growth curve. Also the length in centimeters is plotted against time (in weeks) to get the growth in length.

The length-weight relationship (LWR) was estimated by using the equation by Pauly (1983):

W= _aL^b

Where W= weight (g), L= total length (cm), a = constant, b= growth exponent.

A logarithmic transformation was used to make the relationship linear Log₁₀ W=log₁₀a + b log₁₀^L

Specific growth rate (SGR) = this relationship of difference in the weight of fish within the experiment. SGR = In (W2 – W1) * 100/ T2 – T1

Where W2 = weight of fish at T2 and W1 = weight of fish at T1

Data was reported as means plus or minus (+) the standard deviation of the mean. Microsoft Excel (2010) was used for compilation of means and standard deviation. The length weight relationship was analyzed using the FiSAT (FAO-ICLAM stock assessment tools) software.  Data on growth parameters were analyzed by one-way analysis of variance. T-test was used to determine levels of significant differences in the growth parameters. Analysis of variance was carried out on the physisco-chemical of the water.

RESULTS

The values for Dissolved oxygen, pH, salinity, total alkalinity, and total hardness is given in Table 1 and showed consistence with increase in crude oil concentration and were within the recommended limits for aquatic organisms throughout the bioassay period. The results of the water parameters are given in Table 1. The ANOVA carried out showed that there were no significant differences in the water samples in the control and that of treatment groups.

Table 1: Result of Physico-chemical of water parameters

Mean values in the same row with the same superscript are not significantly different at F α = 0.05.

Growth rate of P. mascariensis was observed to reduce with increasing time of exposure and concentration of WSFs of crude oil when compared with control frogs. See Fig 1 for weekly measurements of weight gain of frogs over a period of 12 weeks at different concentrations of WSFs of crude oil. The total weight gain, increase in length, specific growth rate and length-weight relationship of frogs are presented in Table 2. Fish weight was observed to significantly (P<0.05) reduce with increasing concentration of WSFs with a total mean increase of 39.72g for frogs at concentration of 3mg/L frogs while frogs at the control had a mean weight gain of  31.17g. Length gain showed a total increase of 12.3cm for frogs at the control and 12.1cm for frogs at concentration of 3mg/L. The ANOVA result indicated that there was no significant difference in the gain in length of fogs in the control and frogs exposed to other concentrations of crude oil (p>0.05).  For the specific growth rate (SGR),  4.42 was recorded for the control while the value of 4.14 was recorded for frogs exposed to concentration of crude oil of 3.0mg/L. ANOVA indicated that significant differences (p<0.05) existed in the SGR of the frogs in the control and frogs of other concentrations. Also the length-length relationship had a regression coefficient (b – values) of 3.0050 for the control, and 2.0423 respectively for 3.0mg/L.

Table 2:  Growth parameters of frog P. mascariensis after 84 days exposure to WSF of crude oil

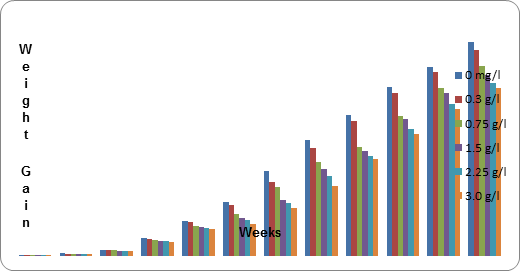

Fig 1: Growth rate of frogs at various concentrations over a period of 12 weeks

DISCUSSION

These results showed that crude oil have a negative effect on the growth the frogs. Exposure of frogs to water-soluble fractions of crude oil may have resulted in reduced food intake and thus lower body weight. This finding simulates the work of Kori-Siakpere (2000) who noted that exposure of fish to WSFs of crude oil, can result in reduced feeding and lower body weight.

This reduced growth performance agrees with other works that have been carried out that indicated dose-dependent effect of toxicant on growth. This includes the works of Esenowo et al. (2010); Nwabueze and Agbogidi (2010); Afolabi et al. (1985). Similarly, Ofojekwu, et al. (2002) reported that fish are known to increase their metabolic rates to metabolize and excrete aromatic hydrocarbons and consequently allocate more energy to homeostatic maintenance than storage, hence a reduction in growth rate. Ofojekwu and Onah (2002) showed that the aromatic compounds from crude oil were responsible for retardation of growth in fishes. In the research by Peakall et al. (1982) in which tadpoles of southern leopard frog (Rana sphencephala) was exposed to TPH from diluents, the specific growth rate was significantly reduced. Also the research by Little et al. (1998) in which of Pacific herring (Clupea pallasi) and pink salmon (Oncorhynchus gorbuscha) treated with petroleum-derived polycyclic aromatic hydrocarbons (PAHs) showed a significantly reduction in growth.

The value of the regression co-efficient obtained for the length-weight relationship for the combined frogs in the control was 3.0 (this indicated an isometric growth form) while that for the frogs exposed to crude oil at various concentrations ranged from 2.0423 - 2.8369. This suggested a negative allometric growth form in all the specimens exposed to crude oil. This showed that pollution by WSF of crude oil affected the growth pattern of the frogs. In a comparative study on L-W relationships of Oreochromis niloticus and Oreochromis aureus in which polluted and non-polluted parts of Lake Mariat, Egypt it was reported by Incardona and Scholz (2005), that there were highly significant variations of L-W relationships of both species in polluted and non-polluted parts of the lake. Similarly, Bakhoum (1994) reported differences in L-W relationships of Oreochromis niloticus in a polluted canal compared with those of other authors in different localities and times. These differences were attributed to the effect of eutrophication and pollution on growth and other biological aspects of O. niloticus.

CONCLUSION

Many pollutants exist in the aquatic environment for short or long time periods at sub lethal levels. These levels are not noticed because they do not cause immediate mortality to the aquatic animals. However the consequences of such effects are morphological and physiological, causing illness and reducing fitness for life. This study indicated that crude oil contamination definitively affect the frogs negatively by causing alterations in the growth rate and growth pattern. Pollution may damage organisms directly by increasing their mortality rates, or interfering with the processes of food acquisition and uptake. Growth represents the integration of feeding, assimilation and energy expenditure over a period of time. Poor growth means less energy is available  for  reproduction ,  which  will  in  turn reduce the species fitness and lead to a decline in population. The use of growth responses as important biomarkers for the possible effects of crude oil on amphibians is an important tool for monitoring the health of these tetrapods in areas where they have the potential to being exposed.

ACKNOWLEDGEMENTS

I am thankful to my Head of Department, Mrs. H. O Imafidon for her encouragement throughout and Mr. A. E. Abah the head to the laboratories of the Department of Animal and Environmental Biology of the University of Port Harcourt for allowing me utilize the facilities in the laboratory.

REFERENCES

Afolabi OA, Adeyemi SA and Imevbore AM (1985). Studies on toxicity of some. Nigerian crude oils to some aquatic organisms, p 269. In: Proceedings of 1985 International Seminar on Petroleum Industry and the Nigerian environment. Federal Ministry of Works and Housing. (Eds). Kaduna. Nigeria  pp, 269-272

APHA (1985). Standard methods for the examination of water and waste water (16th Ed.), American Public Health Association, Washington DC

Anderson J W (1977). Effect of hydrocarbons on the growth of marine organisms. Rapp. Par. Reun. Cons. Int. explor.  Mar.  157-165

Bakhoum SA 1994. Comparative study on length-weight relationship and condition factors of the Oreochromis in polluted and non-polluted parts of Lake Mariut, Egypt. Bull. Natl. Inst. Oceanogr. Fish. Egypt. 20: 201-210

Blaustein AR, Romantic JM., and Kiese, BJ (2003). Ultraviolet radiation, toxic chemicals and amphibian population declines. Diversity and distributions 9: 123-140

Carey C and Bryant CJ (1998). Possible interrelations among environmental contaminant and toxicants, amphibian’s development and decline of amphibian populations. Environ,      health prospect. 103: 13-17

Corn PS., Stoltenberg W and Bury RB (1989). Acid precipitation studies in Colorado and Wyoming: interim report of surveys of montane amphibians and water chemistry. U.S fish and wide life service biological report. 80: 40.26

Esenowo IK and Ugwumba OA (2010). Growth Response of Catfish (Clarias gariepinus) exposed to Water Soluble Fraction of Detergent and Diesel Oil. Environmental Research Journal.  4: 298-301

F.E.P.A, 1999. Guidelines and standards for environmental pollution control in Nigeria. The Federal Environmental Protection Agency, 15-34

Gosner KL (1960). A simplified table for staging anuran embryos and larvae with notes on identification. Herpetological. 16: 183 – 190

Grillitsch RA and Chorance A (1995). Heavy metals and pesticide in anuran spawn and tadpoles, water and sediment. Toxicol environmental chemical 50: 131 – 155

Hartwell HW and Olivier LM (1998). Stream amphibians as indicators of ecosystem         stress: a case study from Californian’s redwoods. Ecological applications 1: 6-9

Howard RD (1988). Reproductive success in two species of anurans. In T. H Clutton-Brocl (eds). Reproductive success. University of Chicago Press, Chicago. Pp 99-113

Incardona JP and Scholz NL (2005). Mechanisms of petroleum hydrocarbon toxicity in fish early life history stages. Journal of Neuroscience. 16: 1614-1622

Jennings M R and Hayes M P (1985). Pre-1900 overharvest of California [USA] red-legged frogs (Rana aurora draytonii): The inducement for bullfrog (Rana catesbeiana) introduction. Herpetologica 41: 94-103

Khallaf EA, Galal M. and Authman M (2003). The biology of Oreochromis niloticus in a polluted: Canal. Ecotoxicol. 12: 405-416

Kori-Siakpere O (2000). Petroleum induced alterations in the African catfish, Clarias gariepinus (Teugels 1984): II-Growth factors. Nig. J. Sc. Env 2: 87-92

Lefcort H and Blaustein AR (1995). Disease, predation avoidance and vulnerability to predation in tadpoles. Oikos 74: 469-474

Little EE, Hurtubise, R and Cleveland L (1998). Photo-enhanced Toxicity of Diluent to the Frog, Rana sphenocephala. U.S. Geological Survey Columbia Environmental Research Center, Columbia 6: 201-218

Lowcock LA, Griffith H and Murphy RW (1992). Size in relation to sex, hybridity, ploidy, and breeding dynamics in central Ontario populations of the    Ambystoma laterale-jeffersonianum complex. Journal of Herpetology 26:46–53

Nafagha OM (2007). Effects of water soluble fractions of crude oil on tadpoles of Bufo     macalatus and Ptychadena mascariensis. Msc. thesis of the Rivers state university of science and technology, 48 pp

Nwabueze AA and Agbogidi OM (2010). Impact of water soluble fractions of crude oil on growth performance of the catfish Heterobrancuhus bidorsalis. ARPN Journal of Agricultural and Biological Science. 5: 1-8

Ofojekwu PC and Onah JA (2002). Effects of water-soluble fractions of crude oil on         growth of the catfish, Clarias gariepinus (Burchell, 1822). Afr. J. Environ Pollut.     Health. 2: 1-7

Peakall D B, Hallett, D J, Bend, JR, Foureman, GL, and Miller DS (1982). Toxicityof Prudhoe Bay crude oil and its aromatic fraction to nestling Herring Gulls, Environ. Res 27: 206-215

Perrin N and Sibly R (1993). Dynamic models of energy allocation and investment. Annual Review of Ecology and Systematics.  24:379–410

Reish DJ and Oshida PS (1986). Manual of methods in aquatic environment research Part 10 Short term static bioassay, Food and Agriculture Organisation           Fisheries Technical Paper 247: 62

Sessions SK and Ruth SB (1990). Explanation for naturally occurring supernumerary limbs in amphibians. The journal of experimental zoology. Photochem. Photobiol 61: 650-655

Turner FB (1960). Post metamorphic growth in anurans. American Midland Naturalist 64:327–338
