GREENER JOURNAL OF ENVIRONMENT MANAGEMENT AND PUBLIC SAFETY



ISSN: 2354-2276





Submitted: 08/02/2017                  Accepted: 10/02/2017                    Published: 27/02/2017





Research Article (DOI: http://doi.org/10.15580/GJEMPS.2017.1.020817018)



Heavy Metal Concentration in Water, Sediment and Tissues of Eichhornia crassipes from Kolo Creek, Niger Delta



Emmanuel N. Ogamba*1, Nwabueze Ebere2 and

Sylvester Chibueze Izah1



1Department of Biological Sciences, Faculty of Science, Niger Delta University, Bayelsa State, Nigeria.

2Department of Animal and Environmental Biology, Rivers State University of Science and Technology, Nkpolu, Port Harcourt, Nigeria.



*Corresponding Author’s E-mail: emmaogamba@ gmail .com



ABSTRACT



This study evaluated the level of some heavy metals in water, sediment and Eichhornia crassipes from Kolo creek, Niger Delta, Nigeria. Triplicate samples were collected from three locations. The samples were processed and analyzed following standard procedures. Results showed that the concentration of lead, cadmium, iron, manganese, mercury and copper ranged from 0.001 – 0.002 mg/l, 0.001 – 0.001 mg/l, 0.137 – 0.157 mg/l, 0.013 – 0.017 mg/l, 0.000 – 0.001 mg/l and 0.019 – 0.114 mg/l respectively for water,  1.676 – 1.757 mg/kg, 0.137 – 0.147 mg/kg, 3.020 – 3.810 mg/kg, 0.407 – 0.490 mg/kg, 0.011 – 0.023 mg/kg and 0.365 – 0.782 mg/kg respectively for sediment. Furthermore, the level of heavy metals in the Eichhornia crassipes ranged from 0.002 – 0.003 mg/kg, 0.003 – 0.004 mg/kg, 0.000 – 0.004 mg/kg and 0.040 – 0.048 mg/kg for lead, cadmium, mercury and copper respectively. Statistically, there was no significant variation (P>0.05) among the various locations in majority of the heavy metals analyzed. The heavy metal concentration in water was below the permissible limit for heavy metal in potable water as specified by World Health Organization and Standard Organization of Nigeria. The concentration of heavy metals were low in water and Eichhornia crassipes suggesting that Kolo creek is not contaminated by heavy metals. However, the heavy metal were in the order Eichhornia crassipes< water sample< sediment.



Keywords: Eichhornia crassipes, Kolo creek, Water and sediment quality.





1.0 INTRODUCTION



Water is one of the most vital resources required by living organisms to thrive on (Agedah et al., 2015; Izah and Srivastav, 2015). In addition, water is a habitat to several organisms. Some of these include aquatic reptiles, snakes, birds, mammals etc. Nigeria has several water resources including surface and ground water (Izah and Srivastav, 2015; Izah and Ineyougha, 2015; Izah et al., 2016; Seiyaboh et al., 2017a, b). Nigerian surface water resources include fresh water (river, stream, pond, lakes, creek, creeklets), brackish/estuaries (salt and fresh water interphase) and marine (salt water) (Izah et al., 2016; Agedah et al., 2015; Izah and Srivastav, 2015; Ogamba et al., 2015 a-c; Seiyaboh et al., 2017b).

Surface water usually has sediment and they play vital roles for the aquatic ecosystem (Seiyaboh et al., 2017b; Ansa and Francis, 2007). Typically, benthic organisms reside in the sediment especially in the brackish and marine ecosystems. Some fish species also thrive on the sediment especially shelled fish. Water sediment exists in two forms including suspended and deposited sediment (Seiyaboh et al., 2017b). Irrespective of the type of sediment, they are affected by the water quality. For instance, changes in water quality arising from anthropogenic activities in the water such as water transportation, dredging, waste deposition and natural effects resulting from runoff following precipitation can also affect the sediment quality. Furthermore, sediments also result from weathering processes of substances/materials which are transported by several actions including wind and water.  As such sediment is predisposed to pollution just as water (Seiyaboh et al., 2017b). Like sand, the particulate size of sediment are in different categories including loose sand, clay, silt, and other soil particles that are found in water sediment.

            The Niger Delta of Nigeria has several fresh water bodies. For instance, in Bayelsa state several rivers, ponds, lakes and creeks exist including River Nun (Agedah et al., 2015; Ogamba et al., 2015a), Kolo creek (Ogamba et al., 2015b; Seiyaboh et al., 2016a), Ikoli creek (Ogamba et al., 2015c, 2016; Seiyaboh et al., 2016b), Sagbama creek (Seiyaboh et al., 2017a,b), Igbedi creek (Seiyaboh et al., 2013a,b), Epie creek (Seiyaboh et al., 2016c), Efi lake (Angaye and Meiyepa, 2015), Lake Adigbe among others. Within the surface water resources, several macrophytes exist. Some commonly found macrophytes include Azolla pinnata var africana, Dryopteris filixmas, Eichhornia crassipes, Nephrolepis biserrata, Nymphacea lotus, Nymphacea maculate, Pistia stratiotes and Salvinia nymphellula (Ohimain and Akinnibosun, 2010, 2008, 2007; Agedah et al., 2015; Ogamba et al., 2015a-c; Seiyaboh et al., 2016b).

Basically, Water hyacinth (Eichhornia crassipes) is an invasive and noxious freshwater weed causing serious threats to water ecosystems (Nyananyo et al., 2007; Ogamba et al., 2015a-d; Ulaeto et al., 2012; Baral et al., 2011; Shanab and Shalaby, 2012). As such, Eichhornia crassipes has been referred to as the world’s worst and most aquatic plant that desires attention (Zhang et al., 2012; Ogamba et al., 2015d, e). Authors have reported that the plant has the tendency to accumulate toxic substances in water (Ogamba et al., 2015c,d). As such it can be used for water purification.

Several studies have been carried out on the bioaccumulation of heavy metals from different water bodies in Bayelsa state. Some of the water bodies include River Nun (Ogamba et al., 2015d), Ikoli creek (Ogamba et al., 2015c). Therefore, this present study assessed the concentration of heavy metals in water, sediment and Eichhornia crassipes from Kolo creek, Niger Delta.





2.0 MATERIALS AND METHODS



2.1 Sample collection



Triplicate samples of the water, sediment and water hyacinths were collected from three locations viz: Kolo, Otusega and Imiringi along Kolo creek, Bayelsa state, Niger Delta region of Nigeria. Sampling was carried out July 2015. One liter sampling containers were used for collecting water samples and aluminum foil was used to collect the sediment.  Jute bag was used to collect the Eichhornia crassipes (including the root, stem and leaves) (Ogamba et al., 2015d). At the point of collection, the samples were carefully labeled and transported immediately to Laboratory for analysis.



2.2 Sample preparations and analysis



The sediment samples were air dried and sieved using mesh in the laboratory. Similarly, the Eichhornia crassipes samples were sundried and then blended using pestle and mortar. The samples (sediment and Eichhornia crassipes were digested using nitric acid and then atomic adsorption spectrophotometer was used to carry out the heavy metal analysis.



2.3 Statistical analysis



Statistical analysis was carried out using SPSS software. The data were expressed as mean ± standard error. Thereafter, analysis of variance was carried out at P = 0.05. The source of observed difference was carried out using Duncan multiple range test statistics.





3.0 RESULTS AND DISCUSSION

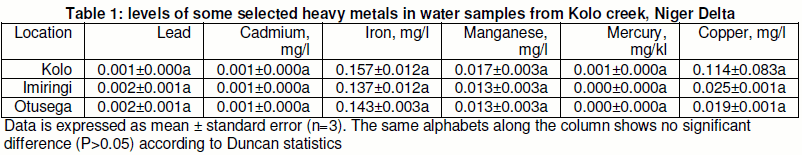

Table 1 presents the heavy metal concentration in water samples from Kolo creek. The values ranged from 0.001 – 0.002 mg/l, 0.001 – 0.001 mg/l, 0.137 – 0.157 mg/l, 0.013 – 0.017 mg/l, 0.000 – 0.001 mg/l and 0.019 – 0.114 mg/l for lead, cadmium, iron, manganese, mercury and copper respectively. There was no significance variation (P>0.05) among the levels of heavy metals in the water samples from the various sampling stations (Kolo, Imiringi and Otusega). Absence of variation suggests that difference in anthropogenic activities going on in the creek at various points (study location) do not alter the heavy metal concentration in the water. The concentration of heavy metals in the water is below the level specific for drinking water by Standard Organization of Nigeria (Nigeria drinking water guideline) SON (2007) and World Health Organization (2011). Again, this suggests that there is no heavy metal pollution in the creek.

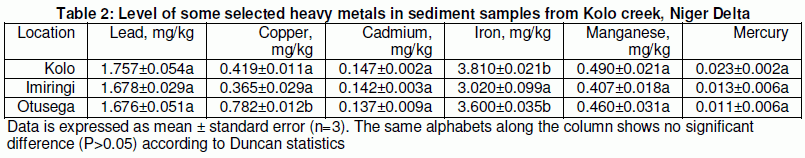

The levels of some selected heavy metals in sediment samples from Kolo creek, Niger Delta are presented in Table 2. The concentration of lead, copper, cadmium, iron, manganese and mercury ranged from 1.676 – 1.757 mg/kg, 0.365 – 0.782 mg/kg, 0.137 – 0.147 mg/kg, 3.020 – 3.810 mg/kg, 0.407 – 0.490 mg/kg and 0.011 – 0.023 mg/kg for lead, copper, cadmium, iron, manganese and mercury respectively. Besides copper and iron, there was no significant difference (P>0.05) among the various locations for each parameter.  Furthermore, apart from samples from Otusega for copper concentration and Imiringi for iron level, there was no significant difference (P>0.05) between the locations for copper and iron.  Absence of significant variation in most of the heavy metals suggest activities leading to heavy metals in soil which deposits in the water sediment is typically the same at the various locations. The occurrence of heavy metals in the sediment far above the concentration in the water suggests the ability of materials including decomposing plants and animals and constituents of various wastes stream to accumulate at the sediment. The occurrence of heavy metals in the environment is typically from several anthropogenic activities resulting from urbanization, industrialization and geologic processes (Butu and Iguisi, 2013; Izah et al., 2016).

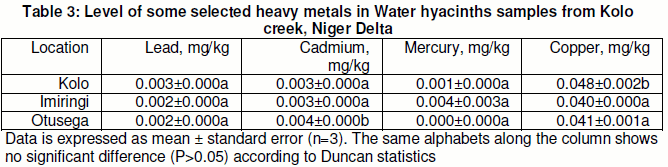

The levels of some heavy metals in tissue of Eichhornia crassipes from Kolo creek are presented in Table 3. The heavy metal concentration ranged from 0.002 – 0.003 mg/kg, 0.003 – 0.004 mg/kg, 0.000 – 0.004 mg/kg and 0.040 – 0.048 mg/kg for lead, cadmium, mercury and copper respectively. Lack of significant variations among the various locations suggested that the level of heavy metal in the tissues of Eichhornia crassipes from Kolo creek is an indication of similarity in the activities leading to heavy metals in the surface water around the study area. The concentration of heavy metals in the tissues of Eichhornia crassipes was very low. This suggests no significant bioaccumulation of heavy metals in the Eichhornia crassipes in the study area. The low concentration could be due to low concentration of heavy metals in the water samples.

            The concentration of heavy metal in water hyacinth tissues in this study is lower than the concentration reported for water hyacinth tissues from other surface waters in Bayelsa state. For instance, Ogamba et al. (2015c) reported concentration of lead and mercury in tissues of Eichhornia crassipes from Ikoli creek in the range of 0.970 – 2.387 mg/kg and 0.010 – 0.017 mg/kg respectively. Ogamba et al. (2015d) reported cadmium and lead in Eichhornia crassipes from River Nun in the range of 0.022 – 0.045 mg/kg and 1.095 – 2.450 mg/kg respectively.







4. CONCLUSION



Eichhornia crassipes is often regarded as one of the worst invasive aquatic plants. The plant causes several obstructions in water ways. This study investigated the heavy metals concentration in water, sediment and Eichhornia crassipes from Kolo creek, Niger Delta, Nigeria. The study found that the heavy metals in the water were below the specified limits for drinking water as recommended by World Health Organization and Standard Organization of Nigeria. The concentration was also low in Eichhornia crassipes. Typically the heavy metal concentration were in the order; sediment> water> Eichhornia crassipes. The concentration suggests that Kolo creek is not contaminated by heavy metals found in the environment.





REFERENCES



Agedah, E.C., Ineyougha, E.R., Izah, S.C., and Orutugu, L.A. (2015). Enumeration of total heterotrophic bacteria and some physico-chemical characteristics of surface water used for drinking sources in Wilberforce Island, Nigeria. Journal of Environmental Treatment Techniques, 3(1): 28 – 34.

Angaye, T.C.N. and Mieyepa, C.E. (2015). Assessment of Elemental and Microbial Quality of Lake Efi In Bayelsa State, Central Niger Delta, Nigeria. Journal of Environmental Treatment Techniques, 3(2): 71 - 75.

Ansa, E.J. and Francis, A. (2007). Sediment Characteristics of the Andoni Flats, Niger Delta, Nigeria. J. Appl. Sci. Environ. Manage., 11(3): 21 – 25.

Butu, A.W. and Iguisi, E.O. (2013). Concentration of heavy metals in sediment of river Kubanni, Zaria, Nigeria. Comprehensive J. Environ. Earth Sci., 2(1):10 – 17.

Izah, S.C. and Ineyougha, E.R. (2015). A review of the microbial quality of potable water sources in Nigeria. J Adv Biol Basic Res 1(1): 12 - 19.

Izah, S.C. and Srivastav, A.L. (2015). Level of arsenic in potable water sources in Nigeria and their potential health impacts: A review. J Environ Treat Techniq 3(1): 15 – 24.

Izah, S.C., Chakrabarty, N. and Srivastav AL. (2016). A Review on Heavy Metal Concentration in Potable Water Sources in Nigeria: Human Health Effects and Mitigating Measures. Exposure and Health, 8:285–304.

Nyananyo, B.L., Gijo A.H. and Ogamba, E.N. (2007). The Physico-chemistry and Distribution of Water Hyacinth (Eichhornia cressipes) on the river Nun in the Niger Delta. Journal of Applied Science and Environmental Management, 11(3): 133 – 137.

Ogamba, E.N., Izah, S.C. and Oribu, T. (2015a). Water quality and proximate analysis of Eichhornia crassipes from River Nun, Amassoma Axis, Nigeria. Research Journal of Phytomedicine, 1(1): 43 – 48.

Ogamba E.N, Seiyaboh EI, Izah SC, Ogbugo I and Demedongha FK (2015b). Water quality, phytochemistry and proximate constituents of Eichhornia crassipes from Kolo creek, Niger Delta, Nigeria. International Journal of Applied Research and Technology, 4(9): 77 – 84.

Ogamba, EN, Izah SC and Toikumo, B.P. (2015c). Water quality and levels of lead and mercury in Eichhornia crassipes from a tidal creek receiving abattoir effluent, in the Niger Delta, Nigeria. Continental Journal of Environmental Science, 9(1): 13 – 25.

Ogamba, E.N., Izah, S.C. and Ogbogu, M.J. (2015d). Cadmium and Lead level in Eichhornia crassipes from River Nun, Niger Delta, Nigeria. Journal of Advances in Biological and Basic Research, 1(1): 53 – 56.

Ogamba EN, Izah SC, Emaviwe D (2015e). Phytochemical assessment of Eichhornia crassipes from River Nun, Nigeria. Research Journal of Phytomedicine, 1(1): 24 – 25.

Ogamba, EN, Izah SC and Ofoni-Ofoni AS (2016). Bioaccumulation of Chromium, Lead and Cadmium in the bones and tissues of Oreochromis niloticus and Clarias camerunensis from Ikoli creek, Niger Delta, Nigeria. Advanced Science Journal of Zoology, 1(1): 13 – 16.

Ohimain, E.I. and Akinnibosun, H.A. (2007). Assessment of wetland hydrology, hydrophytic vegetation and hydric soil as indicators for wetland delineation. Tropical Journal of Environmental Science and Health, 10(1):1 – 13.

Ohimain, E.I. and Akinnibosun, H.A. (2008). Hydrophytic vegetation indicators for wetland delineation in a rapidly expanding coastal mega city, Lagos, Nigeria. African Journal of Bioscience, 1 (1): 95 – 102.

Ohimain, E.I. and Akinnibosun, H.A. (2010). Hydrophytic vegetation indicators for wetland delineation in a coastal swamp, southwestern Nigeria. International Journal of Pure and Applied Science, 3(1): 73 – 81.

Seiyaboh, E.I., Izah, S.C. and Okogbue, B.C. (2016a). Seasonal Variation in Length-Weight Relationship and Condition Factor of Five Fish Species from Kolo Creek, Niger Delta. Greener Journal of Agricultural Sciences, 6(11): 342 – 348.

Seiyaboh, E.I., Inyang, I.R. and Izah, S.C. (2016b). Seasonal Variation of Physico-Chemical Quality of Sediment from Ikoli Creek, Niger Delta. International Journal of Innovative Environmental Studies Research, 4(4): 29-34.

Seiyaboh, E.I., Inyang, I.R. and Izah, S.C. (2016c). Spatial Variation in Physico-chemical Characteristics of Sediment from Epie Creek, Bayelsa State, Nigeria. Greener Journal of Environment Management and Public Safety, 5(5): 100 - 105

Seiyaboh, E.I., Izah, S.C. and Oweibi, S. (2017a). Assessment of Water quality from Sagbama Creek, Niger Delta, Nigeria. Biotechnological Research, 3(1): 3(1):20-24

Seiyaboh, E.I., Izah, S.C. and Oweibi, S. (2017b). Physico-chemical Characteristics of Sediment from Sagbama Creek, Nigeria. Biotechnological Research, 3(1): 25-28

Seiyaboh, E.I., Ogamba, E.N., Utibe, D.I. and Sikoki, F.D. (2013a). Impact of Dredging on the  Fisheries of Igbedi Creek, Upper Nun River, Niger Delta, Nigeria. IOSR Journal of Environmental Science, Toxicology and Food Technology, 7 (5):38 – 44.

Seiyaboh, E.I., Ogamba, E.N. and Utibe, D.I. (2013b). Impact of Dredging on the Water Quality of Igbedi Creek, Upper Nun River, Niger Delta, Nigeria. IOSR Journal of Environmental Science, Toxicology and Food Technology, 7(5): 51 – 56.

Shanab, S.M.M. and Shalaby, E.A. (2012). Biological activities and anticorrosion efficiency of water hyacinth (Eichhornia crassipes). Journal of Medicinal Plants Research, 6(23):3950-3962.

Standard Organization of Nigeria (SON) (2007). Nigerian Standard for Drinking Water Quality. Nigerian industrial standard, Nigeria

Ulaeto, S. B., Ekpe, U. J., Chidiebere, M. A. and Oguzie, E. E. (2012). Corrosion Inhibition of Mild Steel in Hydrochloric Acid by Acid Extracts of Eichhornia Crassipes. International Journal of Materials and Chemistry, 2(4): 158-164.

World Health Organization (WHO) (2011). Guideline for drinking water quality. 4th Edition.

Zhang, H. (2012). Can Water Hyacinth Clean Highly Polluted Waters? —A Short Paper for Discussion. Journal of Environmental Protection, 3: 340-341.





Cite this Article: Ogamba EN, Ebere N and Izah SC (2016). Heavy Metal Concentration in Water, Sediment and Tissues of Eichhornia crassipes from Kolo Creek, Niger Delta. Greener Journal of Environmental Management and Public Safety, 6(1): 001-005, http://doi.org/10.15580/GJEMPS.2017.1.020817018
